Plain 3 Rosette

The Plain 3 rosette is a 3-sided polygon rosette. Some turners call this a "puffy" rosette because of the shape of the rosette, but at the target diameter on the object, it will yield a polygon with straight sides.

Aspect Value Comments
Pattern Straight Line
Pattern Repeated 3 times Pattern at the target Diameter
Target Diameter
for Rosette Design 		2”

At this diameter on the object being cut, the cuts will produce a 3-sided polygon.

  • A smaller diameter on the object results in surfaces which are concave between the apexes.

  • A larger diameter on the object results in surfaces which are convex between the apexes.

  • An amplitude adjuster can be used to modify these effects.
Phasing Holes 1/8 & 1/30 lobe There are two sets of phasing holes in this rosette.
Works For End Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Side Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Complementary Rosettes

Consider pairing this rosette with one of these.

Examples

Click on any of the images below to see a bigger version.

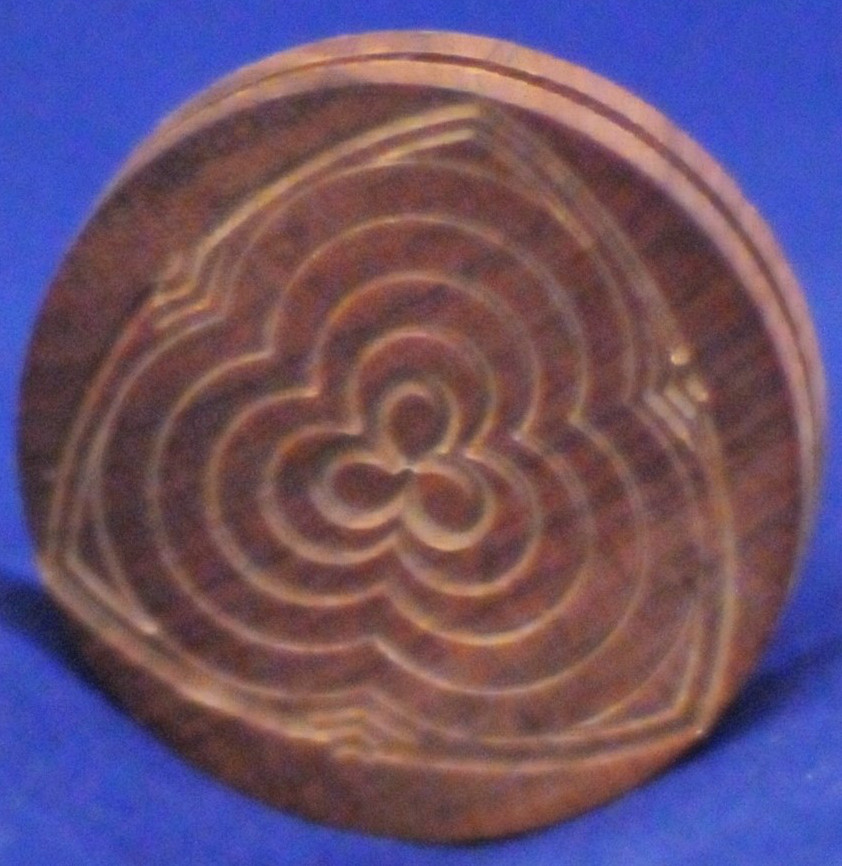

This picture shows the design cutting from the near side.

Dawn noted that she used a 60° drill in a Drill Spindle.

Image courtesy Dawn Herndon-Charles

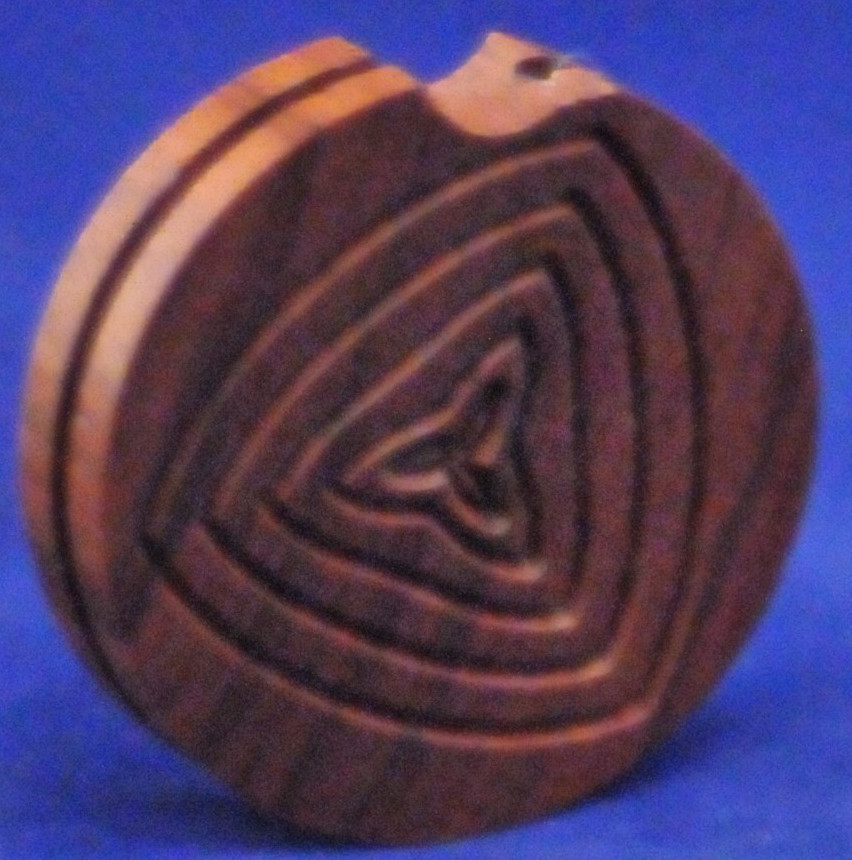

This picture shows the design cutting from the far side; however the outermost framing was cut from the near side.

Dawn noted that she used a 60° drill in a Drill Spindle.

Image courtesy Dawn Herndon-Charles

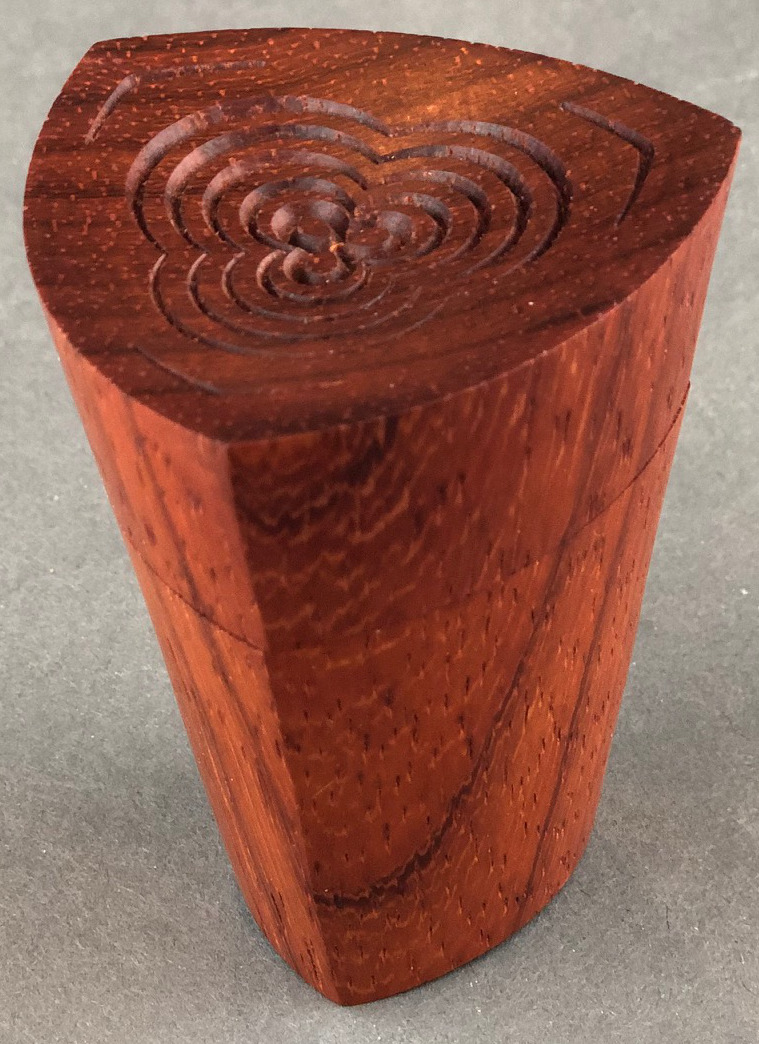

This picture is a box and shows the design cutting from the far side.

Again, note the accents added in the crevices of the designs.

Image courtesy Dawn Herndon-Charles

Paper Chuck Drawing

Drawn from the Near Side

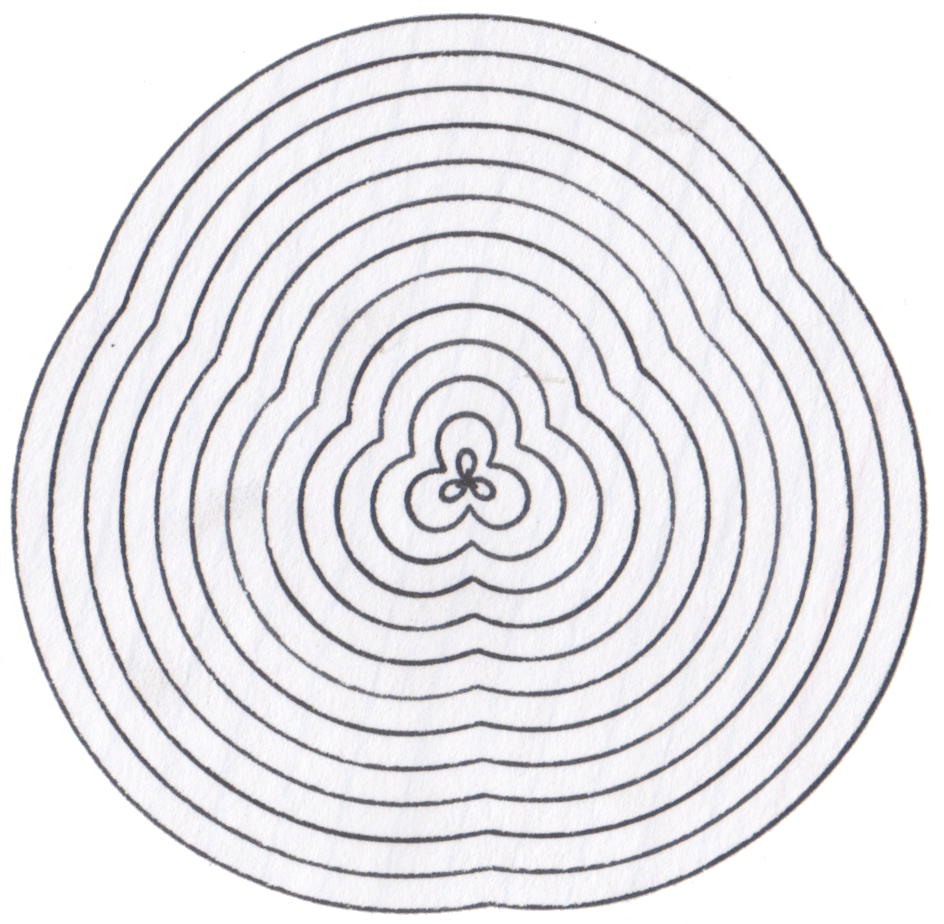

Paper Chuck Drawing

Drawn from the Far Side.
