Z Shape

Z-12 Rosette

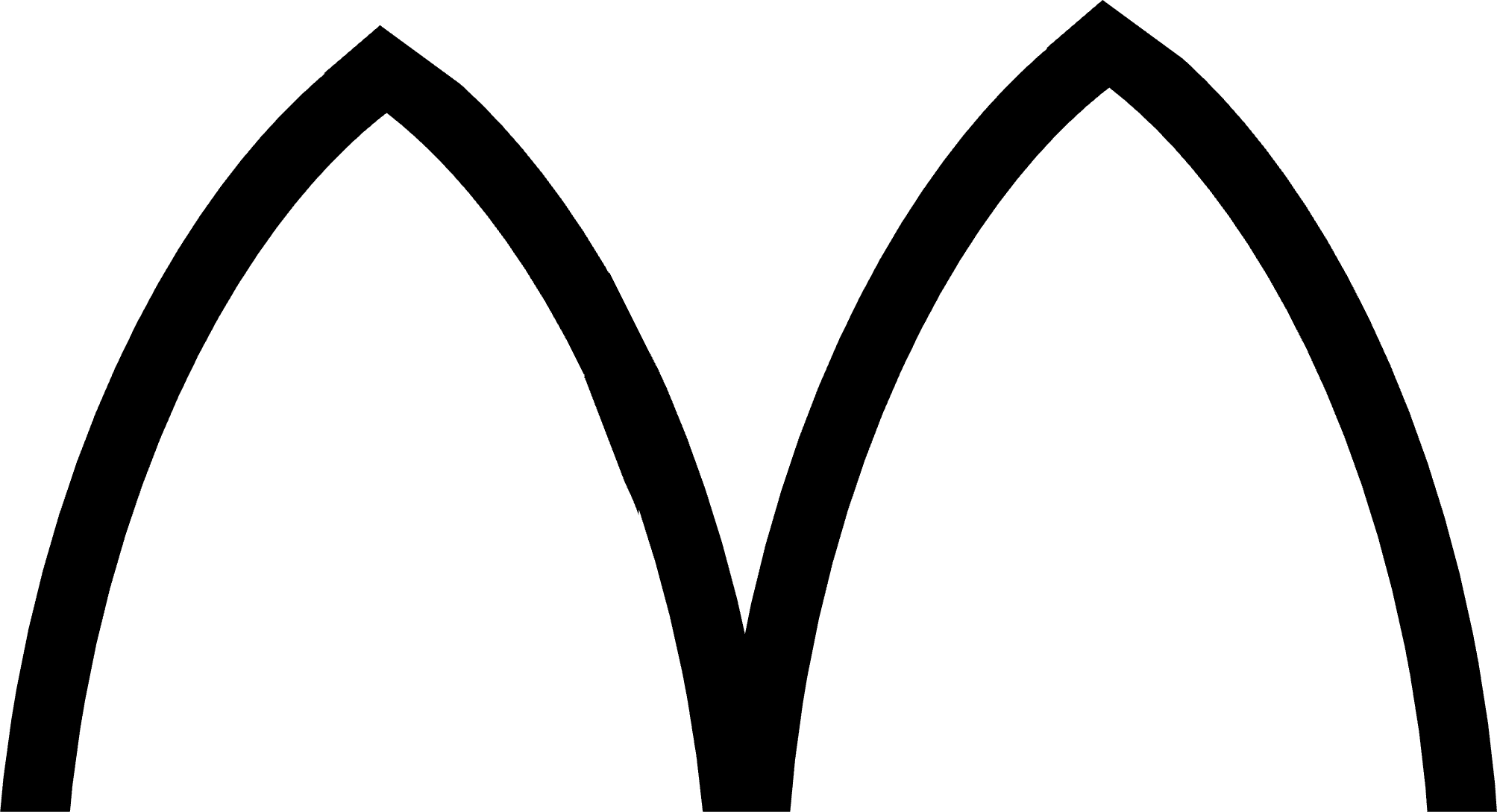

The Z-12 rosette is an 12-sided rosette which resembles the petals on a dhalia flower. The lines connecting the points with the recesses are curved.

Aspect Value Comments
Pattern Points resembling a dhalia flower
Pattern Repeated 12 times
Target Diameter
for Rosette Design 		2”
  • A smaller diameter on the object results in surfaces which have sharper curves at the apexes of the curves.

  • A larger diameter on the object reverses this.

  • An amplitude adjuster can be used to modify these effects.
Phasing Holes 1/4 lobe
Works For End Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Side Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Complementary Rosettes

Consider pairing this rosette with one of these.

Examples

Click on any of the images below to see a bigger version.

Paper Chuck Drawing

Drawn from the Near Side

Paper Chuck Drawing

Drawn from the Far Side.
