Plain 5 Rosette

The Plain 5 rosette is a 5-sided polygon rosette. Some turners call this a "puffy" rosette because of the shape of the rosette, but at the target diameter on the object, it will yield a polygon with straight sides.

Aspect Value Comments
Pattern Straight Line
Pattern Repeated 5 times Pattern at the target Diameter
Target Diameter
for Rosette Design 		2”

At this diameter on the object being cut, the cuts will produce a 5-sided polygon.

  • A smaller diameter on the object results in surfaces which are concave between the apexes.

  • A larger diameter on the object results in surfaces which are convex between the apexes.

  • An amplitude adjuster can be used to modify these effects.
Phasing Holes 1/8 lobe
Works For End Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Side Cutting ☑ Near side cutting
☑ Far side cutting, or using rear rubber column
Complementary Rosettes

Consider pairing this rosette with one (or more) of these.

Examples

Click on any of the images below to see a bigger version.

  • The cuts in the top center show how shape has "collapsed" in on itself, generating a shape that is almost floral.

  • The cuts around the outside show how the shapes are reversing this, becoming convex.

Image courtesy Jon Magill

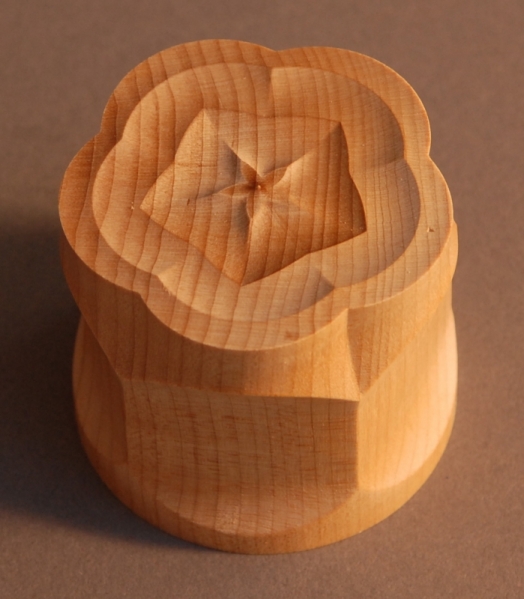

This picture shows the design as cut from the near side.

Image courtesy John Moe.

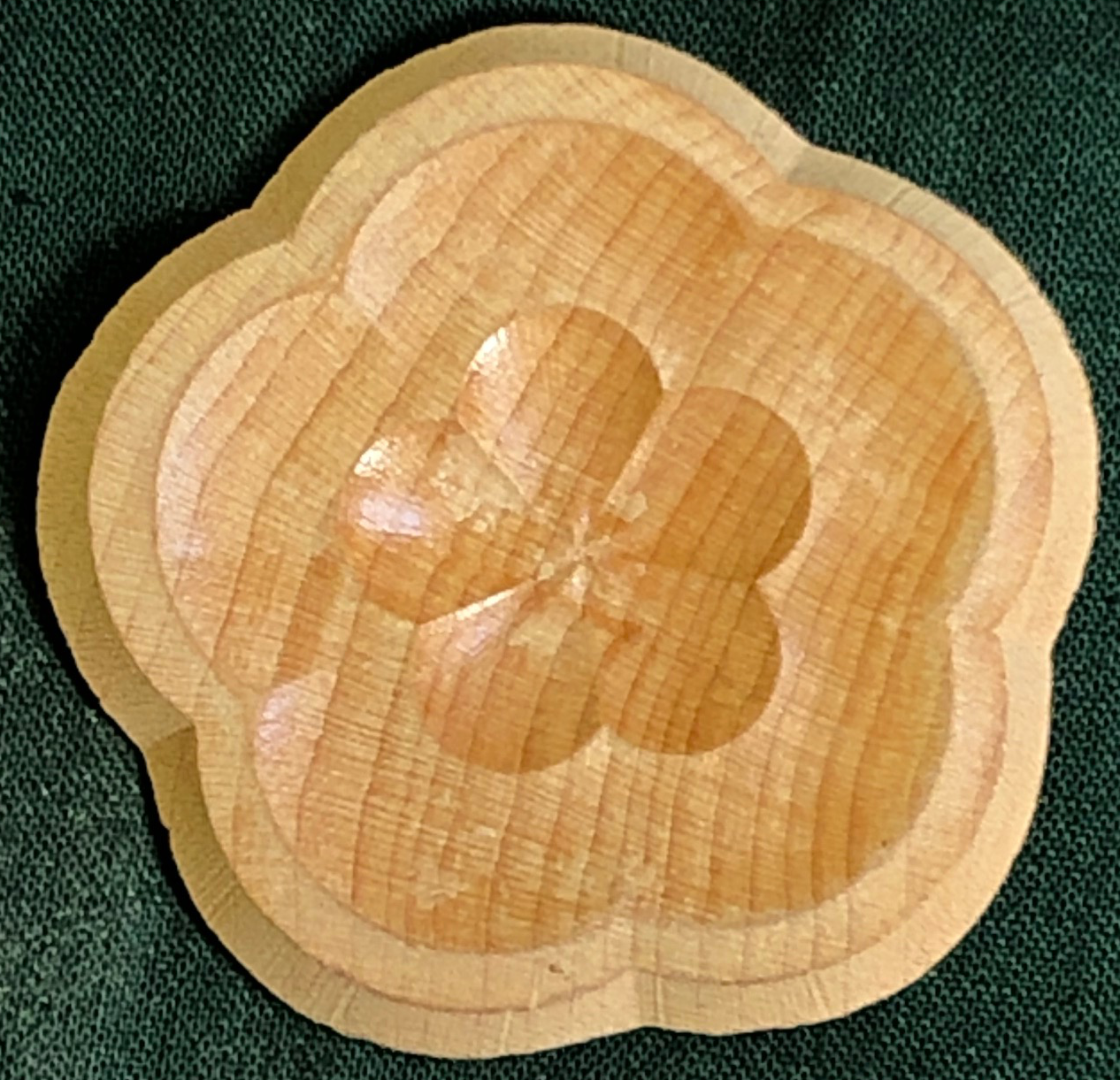

This picture shows the design as cut from the far side.

Image courtesy John Moe.

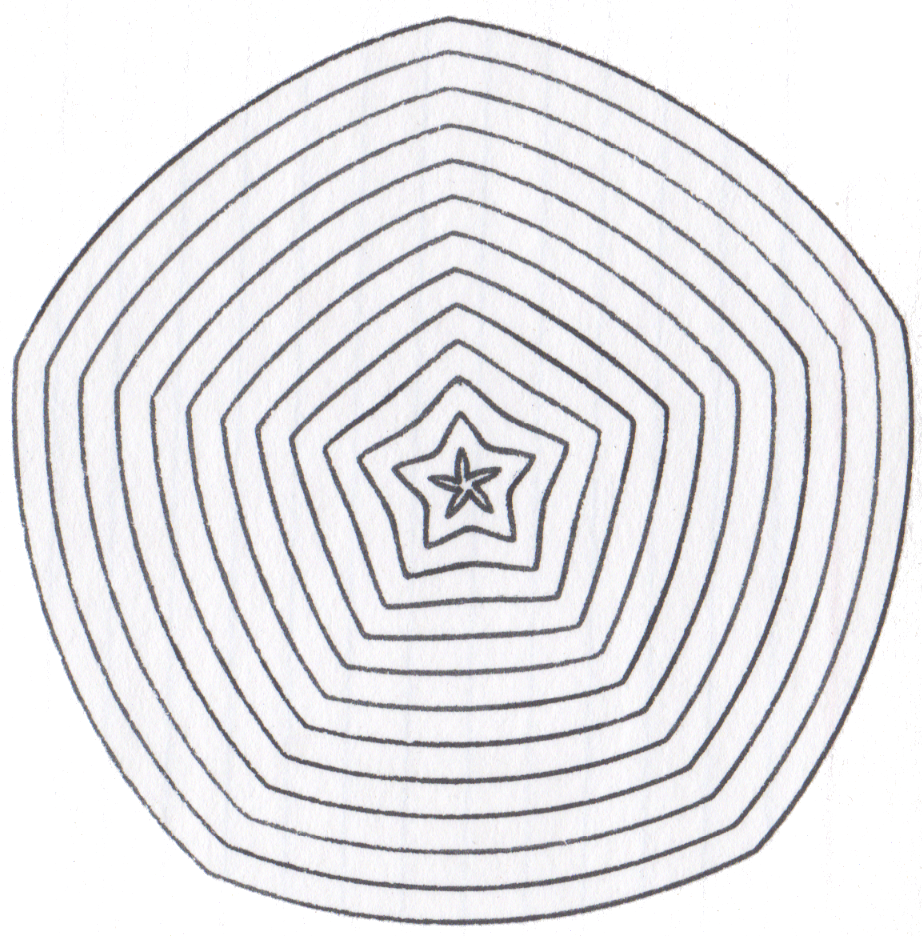

Paper Chuck Drawing

Drawn from the Near Side

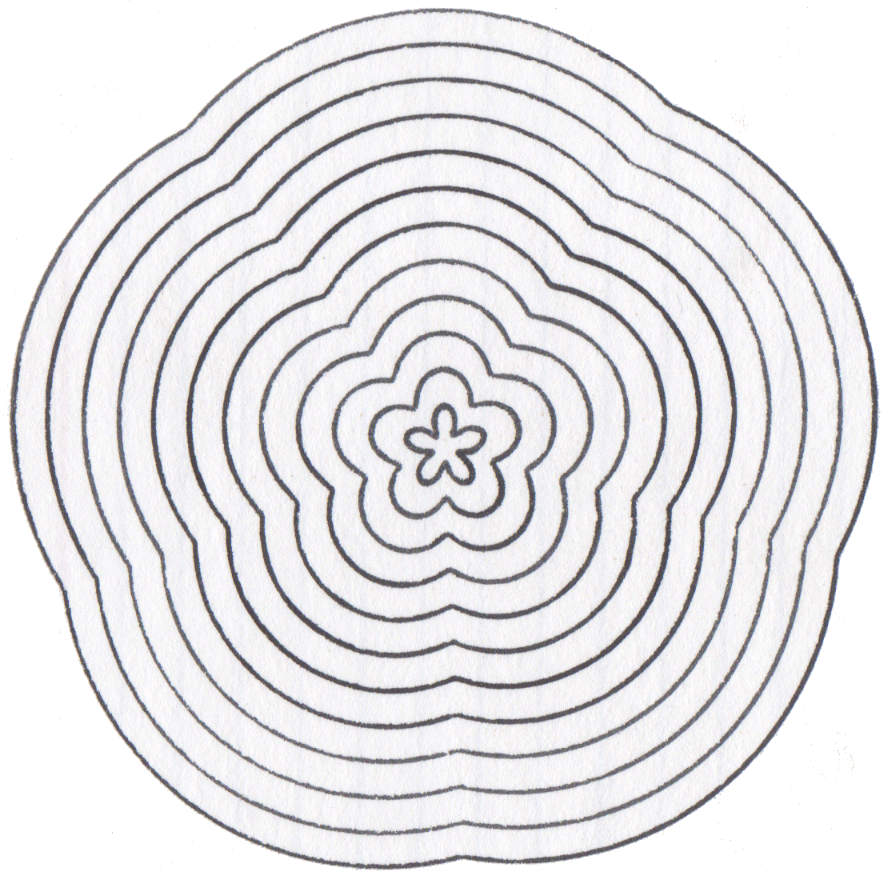

Paper Chuck Drawing

Drawn from the Far Side.
