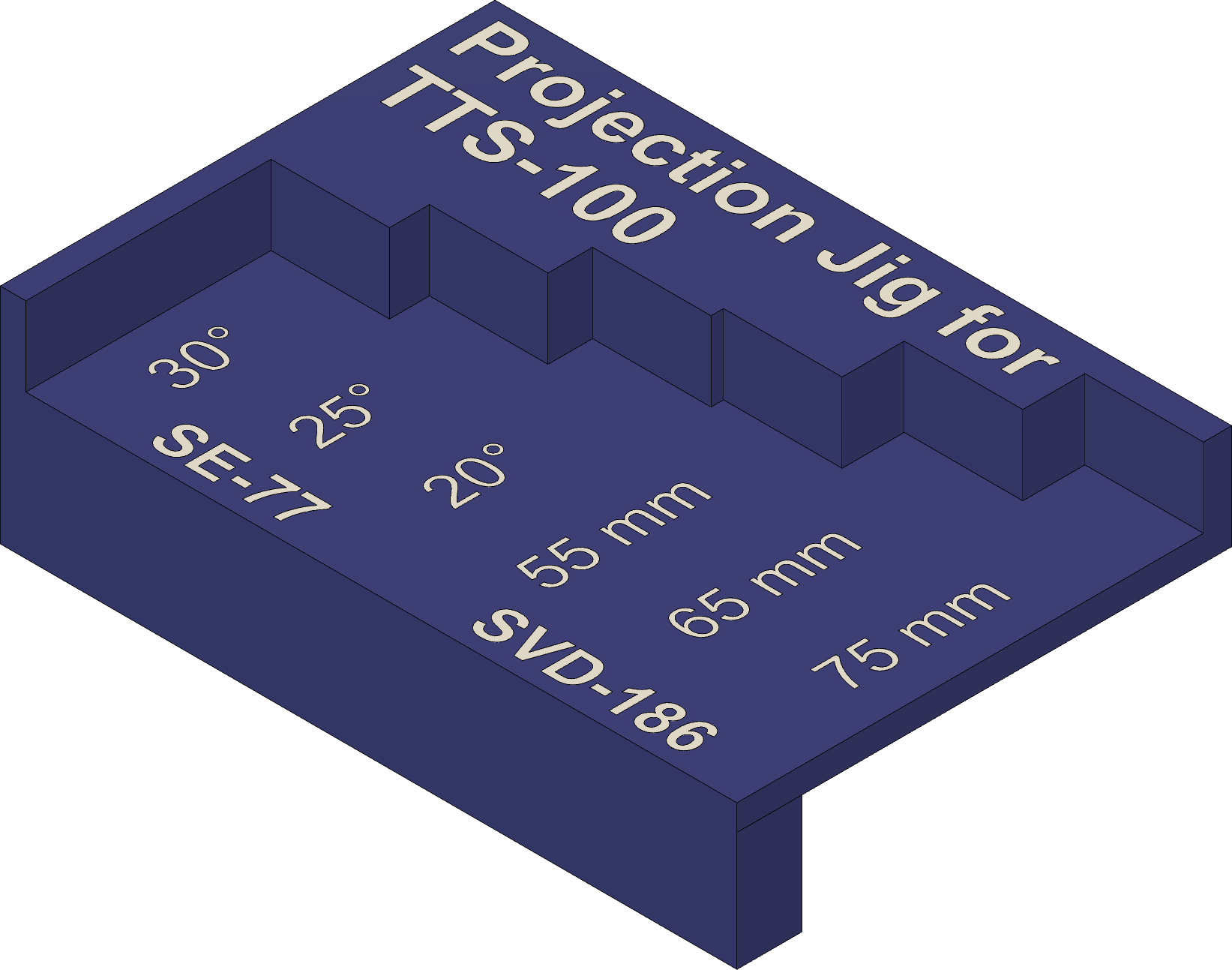

TTS-100 Projection Jig

TTS-100 Projection Jig

When sharpening carving or turning tools,

• the Tormek TTS-100 is used to set the USB’s distance from the grinding wheel (using either the A or B setting), and then
• the Tormek TTS-100 is used with the Tormek SVD-186 (or SVD-185) jig to set the tool’s projection.

The same approach is used for grinding standard angles (20°, 25°, or 30°) on chisels. In this method,

• the Tormek TTS-100 is used to set the USB’s distance from the grinding wheel (using the B setting), and then
• the Tormek TTS-100 is used with the Tormek SE-77 jig to set the tool’s projection.

This jig is used with:

1. the TTS-100 jig, and the SE-77 jig, or
2. the TTS-100 jig, and one of the SVD-18x jigs (SVD-186, SVD-185, or SVD-100).

Those are not included with this jig.

This jig is fully 3D-printed as this allows me to keep the cost down.

Price shown does not include taxes nor shipping.

To order one, please send an eMail to ColvinTools@Gmail.com.

Want to 3D Print your Own?

If you want to 3D print one of these, the plans are available at the Sharpening Handbook in the jigs section. My only requirement when you do this is that you only make them for your personal use and that you not offer them for sale.
