Snowflake Rosette

The Snowflake rosette is as it is named, in the shape of a snowflake.

Aspect Value Comments
Pattern Snowflake
Pattern Repeated 1 time This is a 6-sided snow-flake.
Target Radius
for Rosette Design
2”

At this diameter on the object being cut, the cuts will produce a nice shape.

  • A smaller diameter on the object results in surfaces which are concave between the apexes.

  • A larger diameter on the object results in surfaces which are convex between the apexes.

  • An amplitude adjuster can be used to modify these effects.
Phasing Holes 1/8 lobe
Works For End Cutting Near side cutting
Far side cutting, or using rear rubber column.

The rounded sides give a very pleasing shape.

Side Cutting Near side cutting
Far side cutting, or using rear rubber column

The rounded sides give a very pleasing shape.

Complementary Rosettes

This is designed to be a stand-alone rosette, though rosettes which are a multiple of 6 would work well, and possibly the P-3.

Examples

Click on any of the images below to see a bigger version.

Paper Chuck Drawing

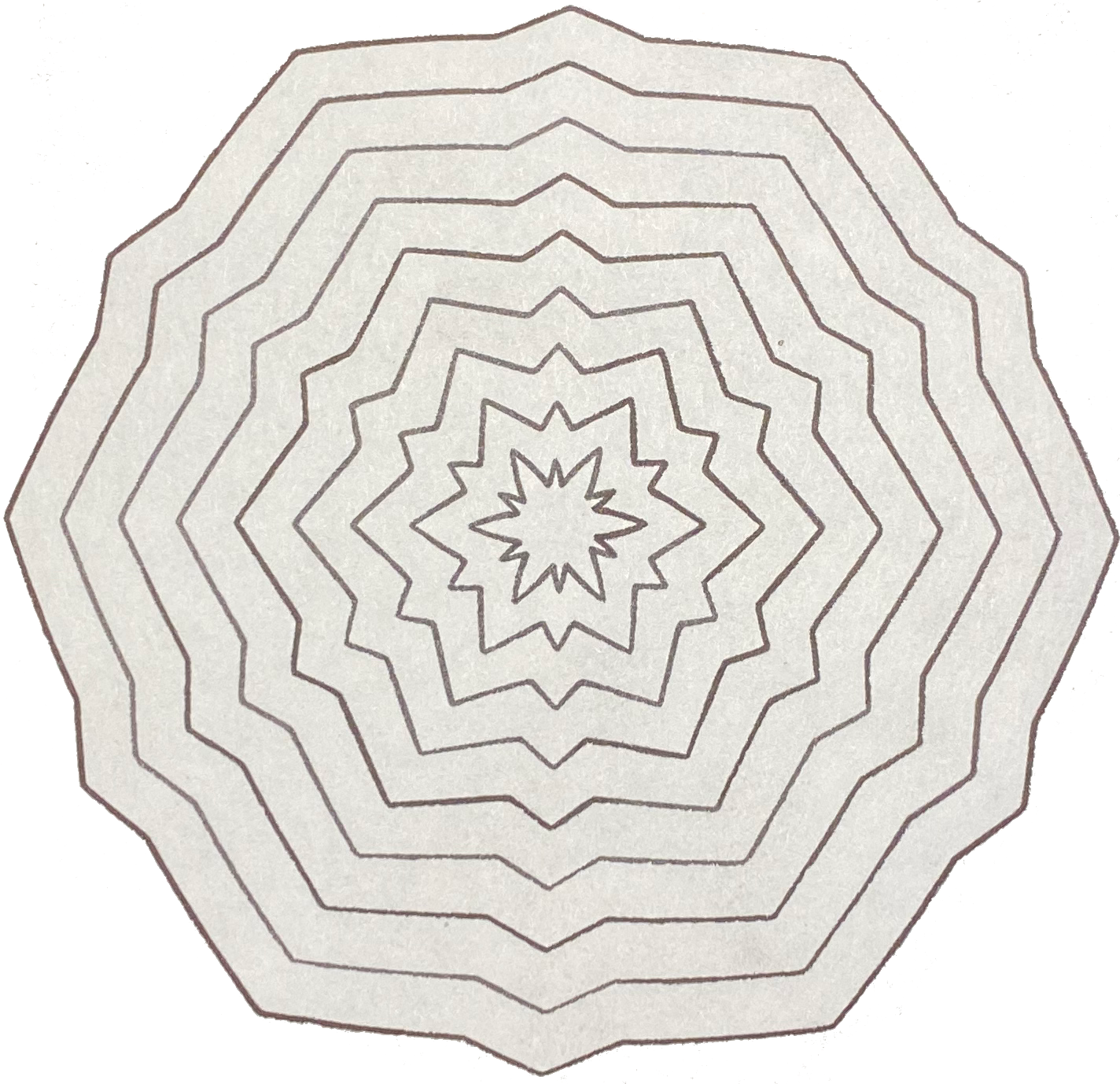

Drawn from the Near Side

Paper Chuck Drawing

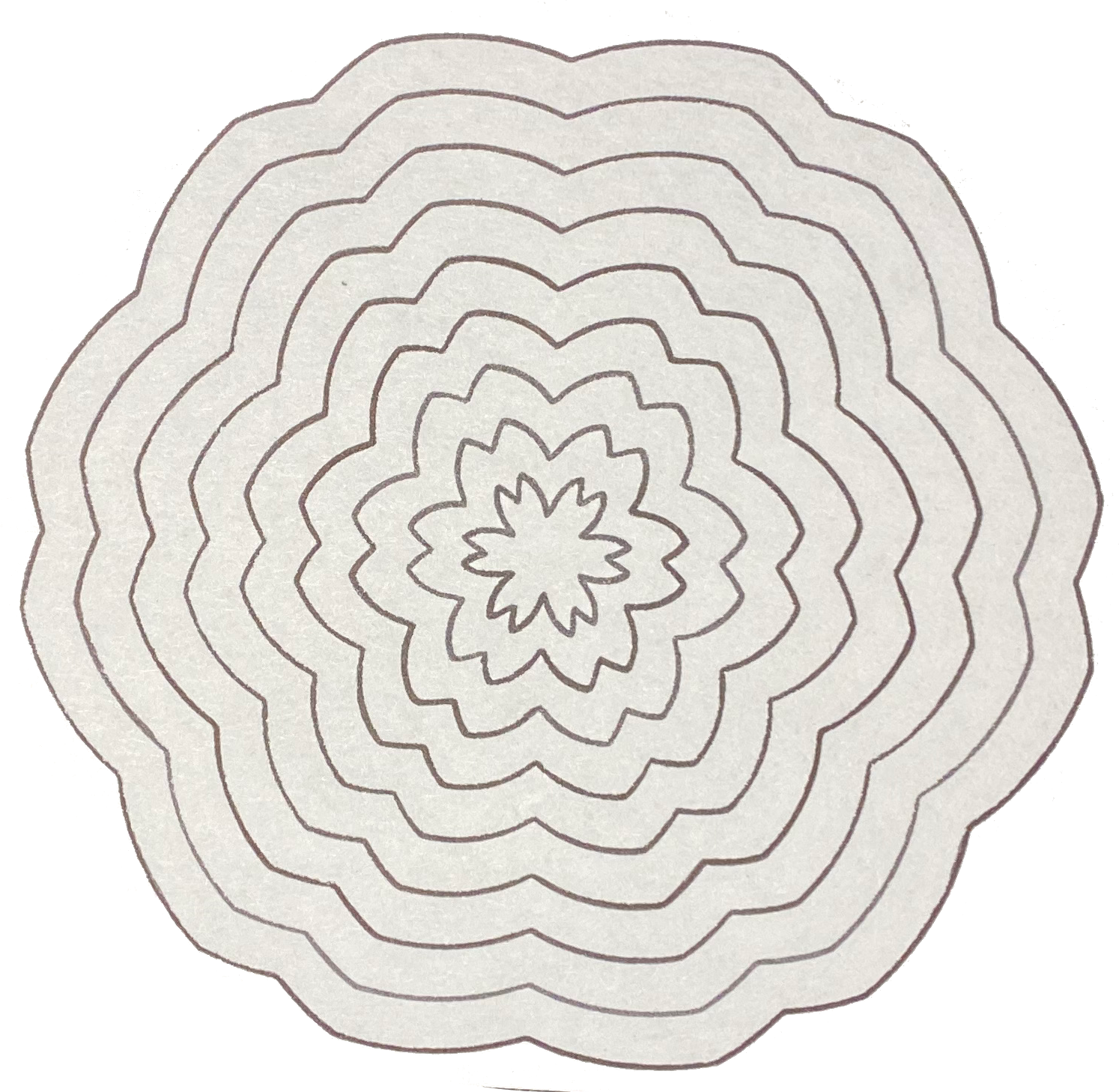

Drawn from the Far Side

  • The cuts in the top center show how the shape has "collapsed" in on itself, generating a shape that is almost floral.

  • The cuts around the outside show how the shapes are reversing this, becoming more convex.

Image courtesy Jon Magill

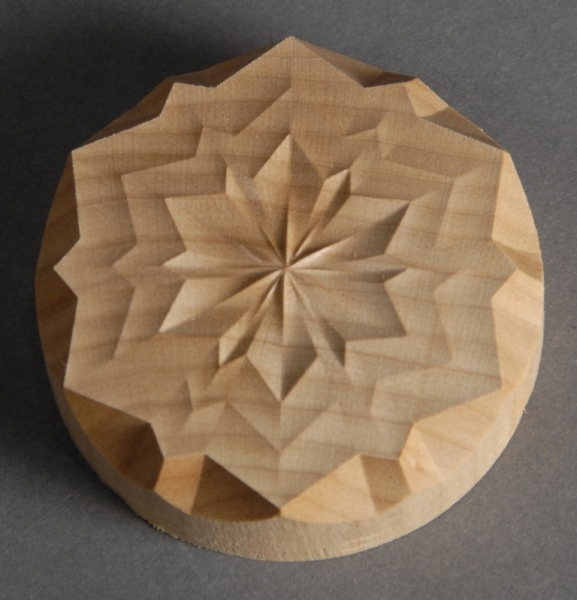

This picture shows the design as cut from the far side.

Image courtesy John Moe.

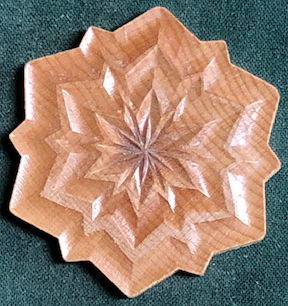

This picture shows the design as cut from the near side.

Image courtesy John Moe.
