MDF Rose Engine Lathe 2.0
Control System for Multiple Stepper Motors
HTML Map
Used to return to the prior screen.

Used to refresh the values shown in the gray boxes.

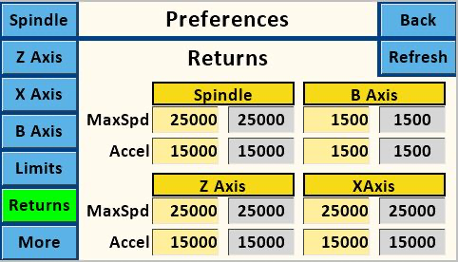

Preferences Screen

Touch the buttons on the screen image to the right to see the details for the that screen.
Purpose: Set speed and acceleration for return actions.

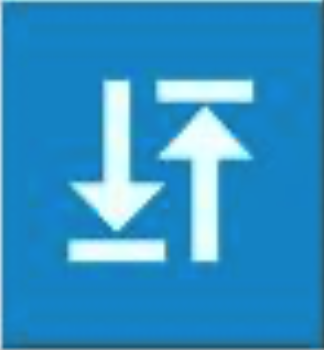

Return actions are initiated when a button like the one to the left is pressed.

  • The values shown in a  tan box  show values on the Nextion. Touching one of the text boxes allows you to edit that value using the Number Pad screen.

  • The values shown in a  gray box  show the ones stored on the Teensy controller. These are read only and should match the settings on the Nextion.
