MDF Rose Engine 2.0
3D Printing Parts
for the MDF Rose Engine Lathe 2.0
ELFOS Hardware

Click on any picture to see a larger version.

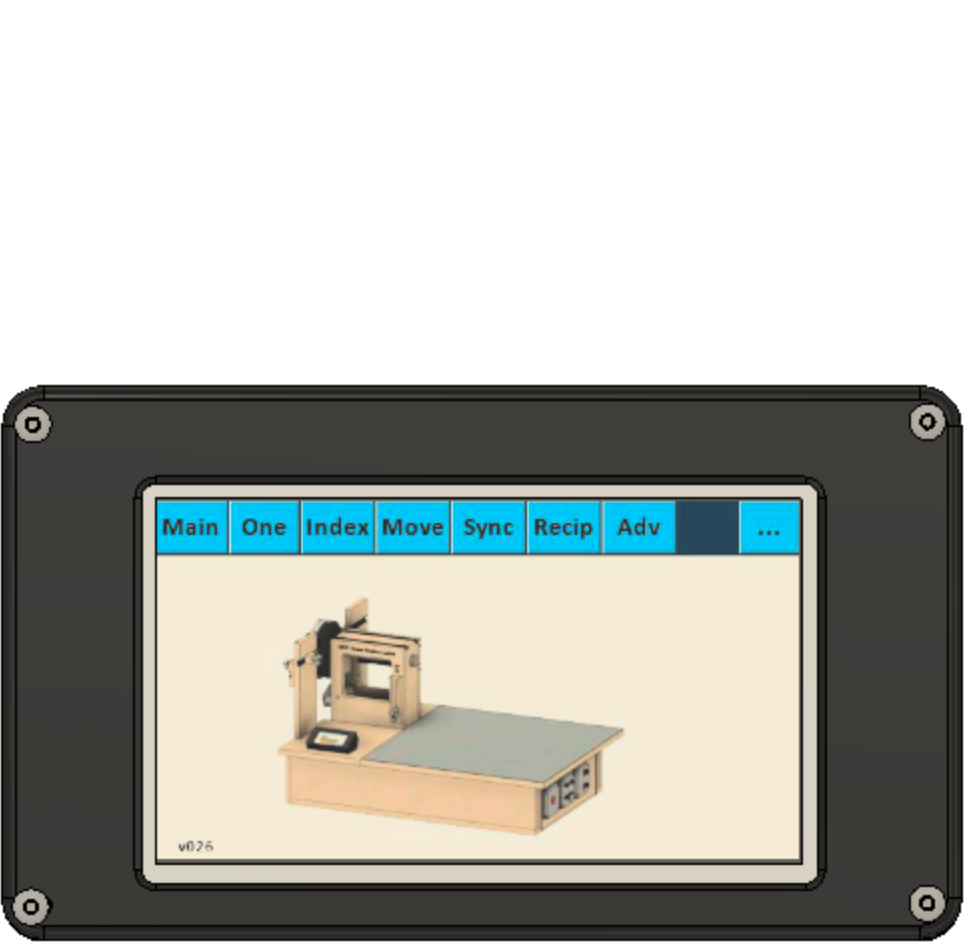

Case for Nextion HMI
4.3" Case 7" Case
- - - - - - - - - - - - Screen images simulated for size comparison - - - - - - - - - - - -

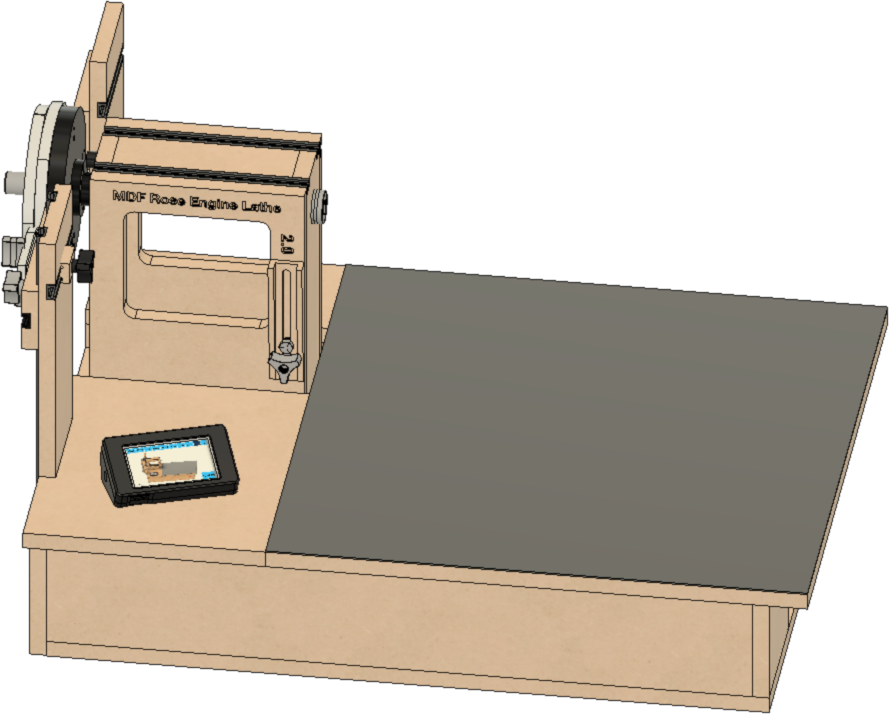

Nextion 4.3" HMI

For

  • E series, or
  • I series
Case Base
G-code Nextion 4.3e Base.gcode
STL Nextion 4.3e Base.stl

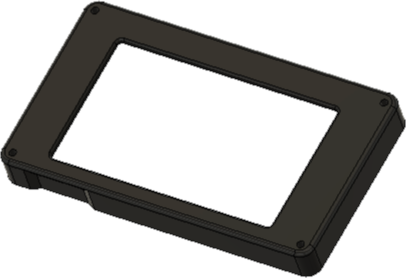

Case Bezel
G-code Nextion 4.3e Bezel.gcode
STL Nextion 4.3e Bezel.stl

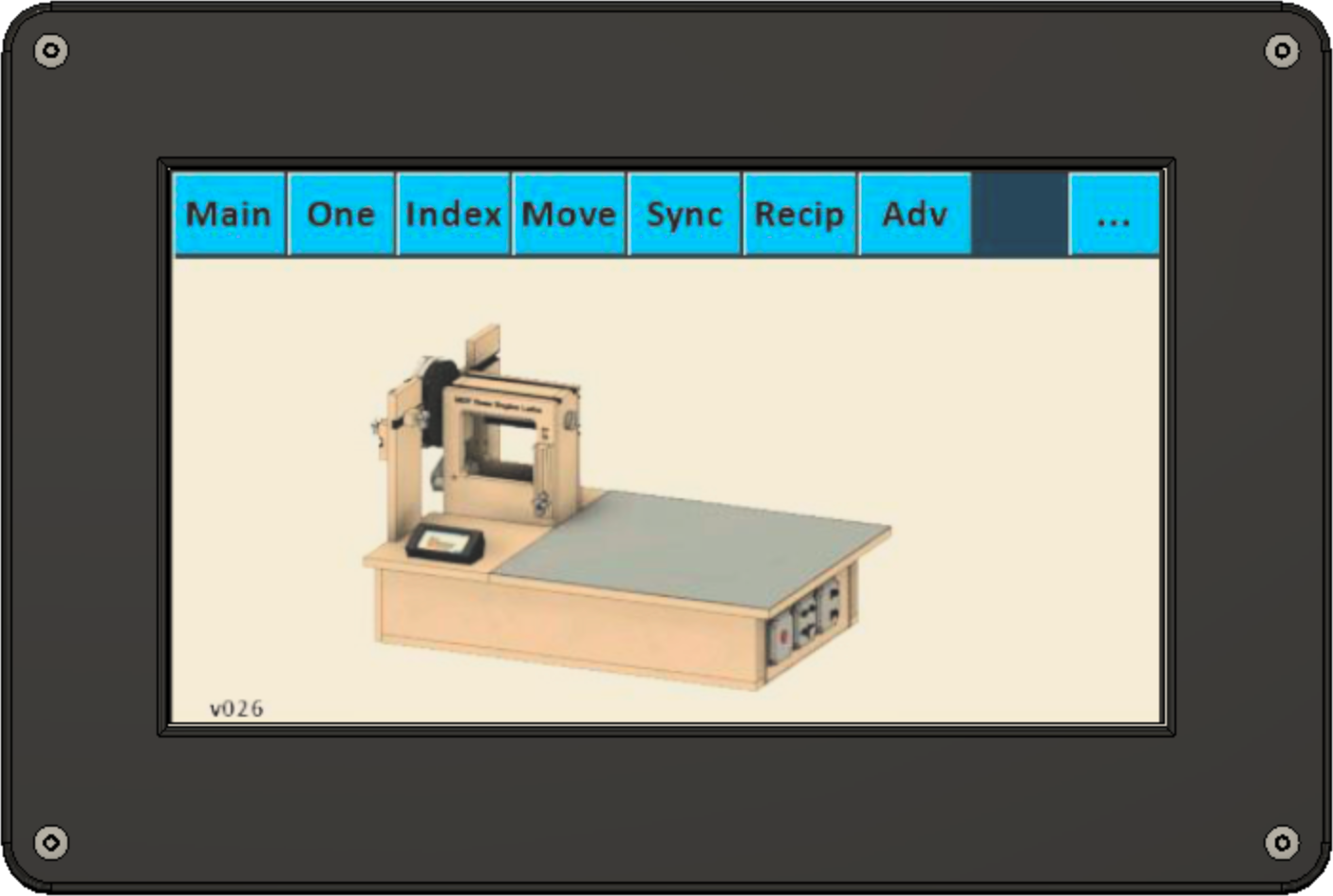

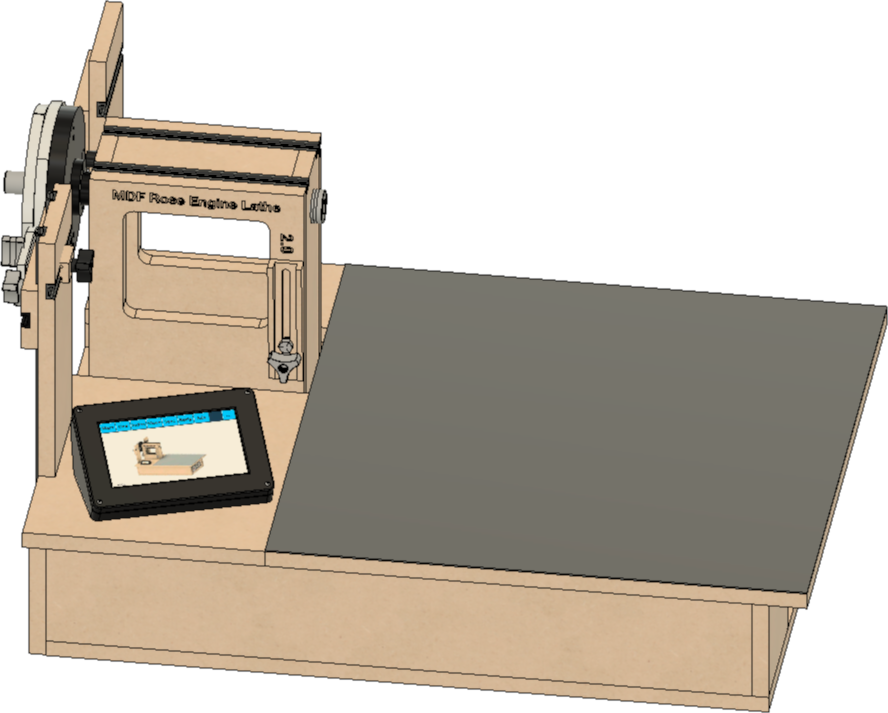

Nextion 7" HMI

For

  • I series
Case Base - Flat
G-code Nextion 7i v1 Base - Flat.gcode
STL Nextion 7i v1 Base - Flat.stl

Case Base - Angled
G-code Nextion 7i v1 Base - Angle.gcode
STL Nextion 7i v1 Base - Angle.stl

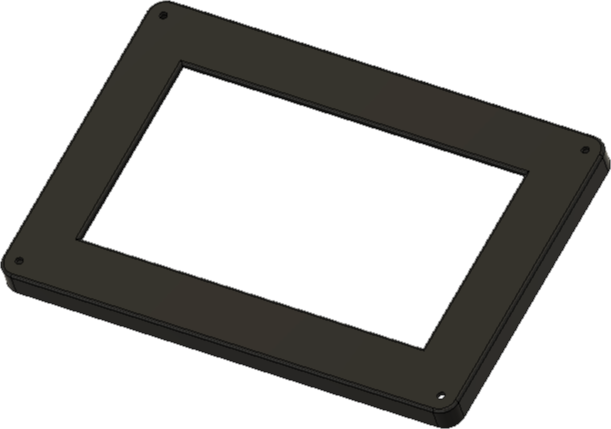

Case Bezel
G-code Nextion 7i v1 Bezel.gcode
STL Nextion 7i v1 Bezel.stl

Case Base, New Design
G-code Nextion 7i v2 Base - Angle.gcode
STL Nextion 7i v2 Base - Angle.stl

Case Bezel, New Design
G-code Nextion 7i v2 Bezel.gcode
STL Nextion 7i v2 Bezel.stl
Controls Case

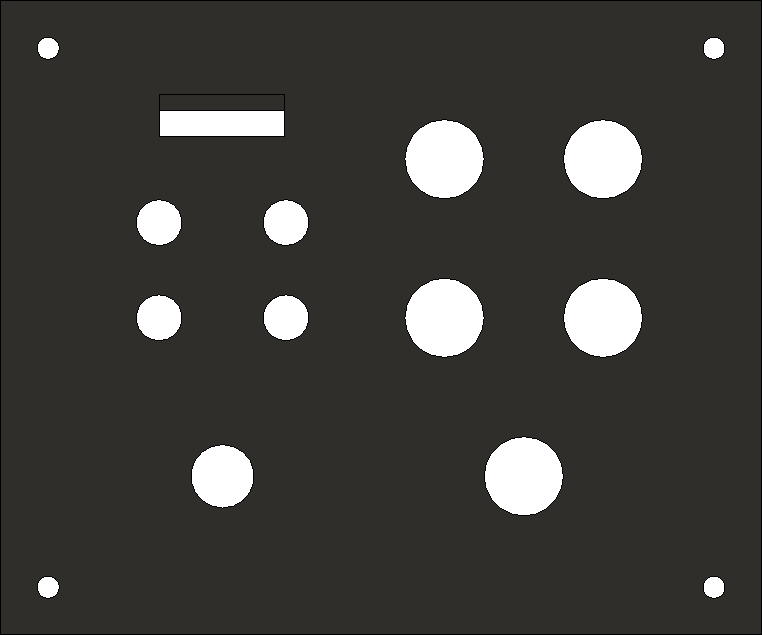

ELFOS Face Plate for Controls
Version 4
Openings for Qty
microSD extension cable 1
GX-16/4 for stepper motors 5
GX-12/4 for HMI 1
3.5mm audio for Limit Switches
& Stop Button 		4

Use with the 5-axis printed circuit board (PCB).

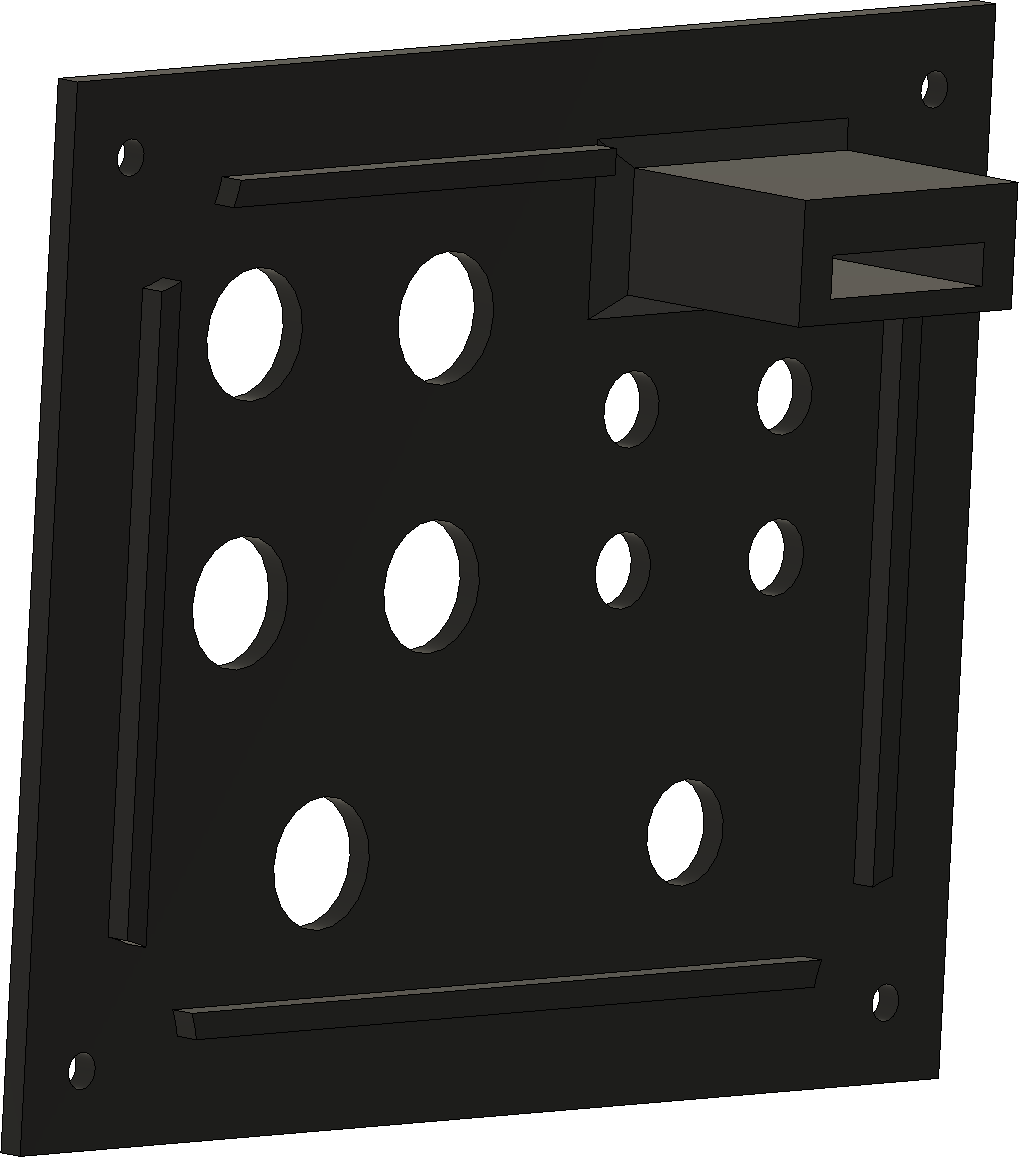

The back side has raised areas for alignment (click on the link to see it).

G-code ELFOS Face Plate - Controls v4.gcode
STL ELFOS Face Plate - Controls v4.stl

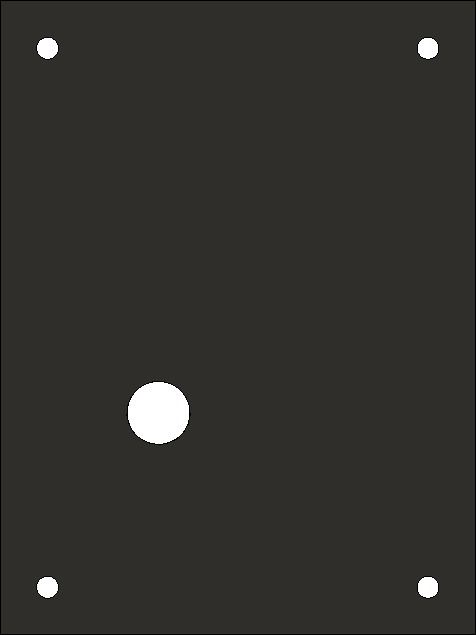

ELFOS Face Plate for Power
Version 4
Openings for Qty
Power Switch 1

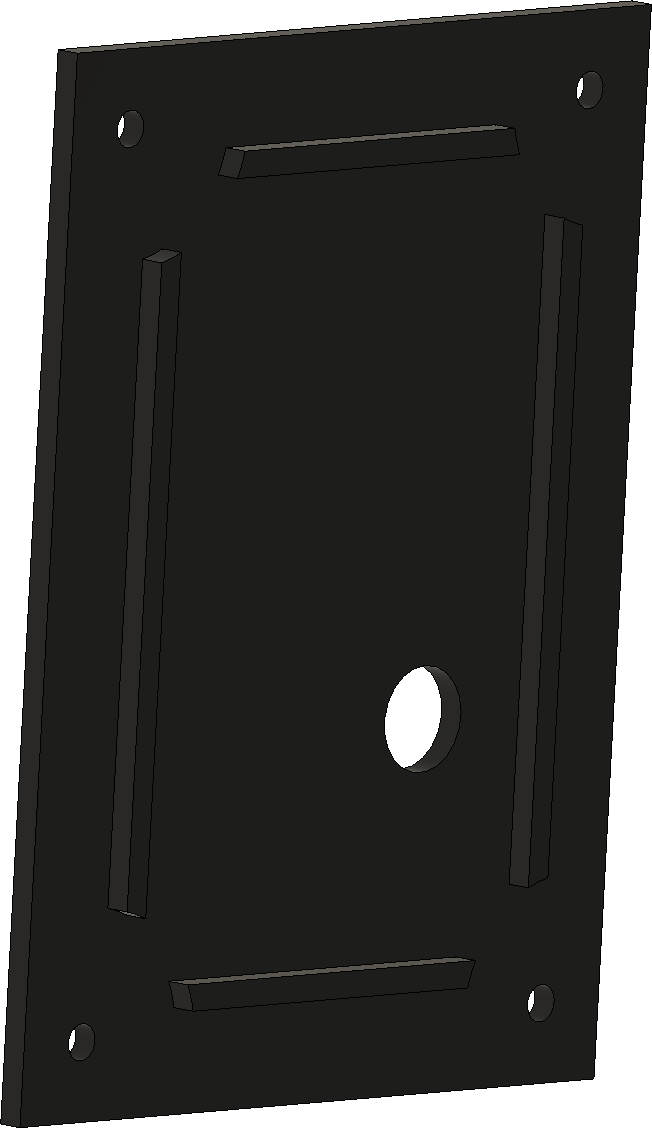

The back side has raised areas for alignment. (click on the link to see it).

G-code ELFOS Face Plate - Power v4.gcode
STL ELFOS Face Plate - Power v4.stl
